Materials used in the various for construction of parts in contact with liquids:
- Aluminium
- Stainless steel - AISI 316
Materials used for diaphragms:
- Geolast (Buna-N)
- Santoprene (EPDM)
- **Teflon
- Viton

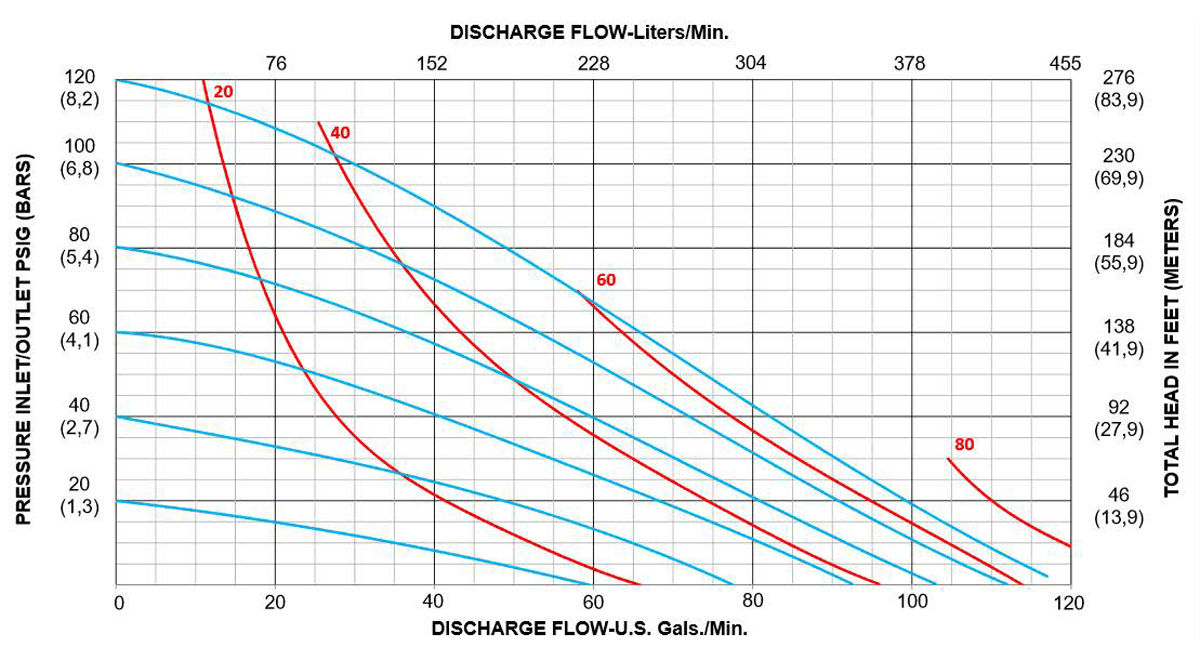

| Flow rate adjustable | from 0 to 492 l/min. (con H2O) |
| Max pressure |
from 1,3 to 8,2 bar |
| Weight |
60 kg Stainless - 27,2 kg Allum. |
| Suction |
1" 1/2 Flang. |
| Discharge |
1" 1/2 Flang. |
| Air inlet |
3/4" G.f. |
| Suction lift | ~ 4 mt a dry |
| Maximun size of solids | Ø 6,4 mm |
| Max temperatur | 93°C Allum. / Stainless - Aisi 316 |
| Capacity | 1,748 lt |
