Materials used in the various for construction of parts in contact with liquids:
- Aluminium
- Stainless steel - AISI 316
Materiali di costruzione dei diaframmi e valvole a contatto nei liquidi:
- Geolast (Buna-N)
- Santoprene (EPDM)
- **Teflon
- Viton

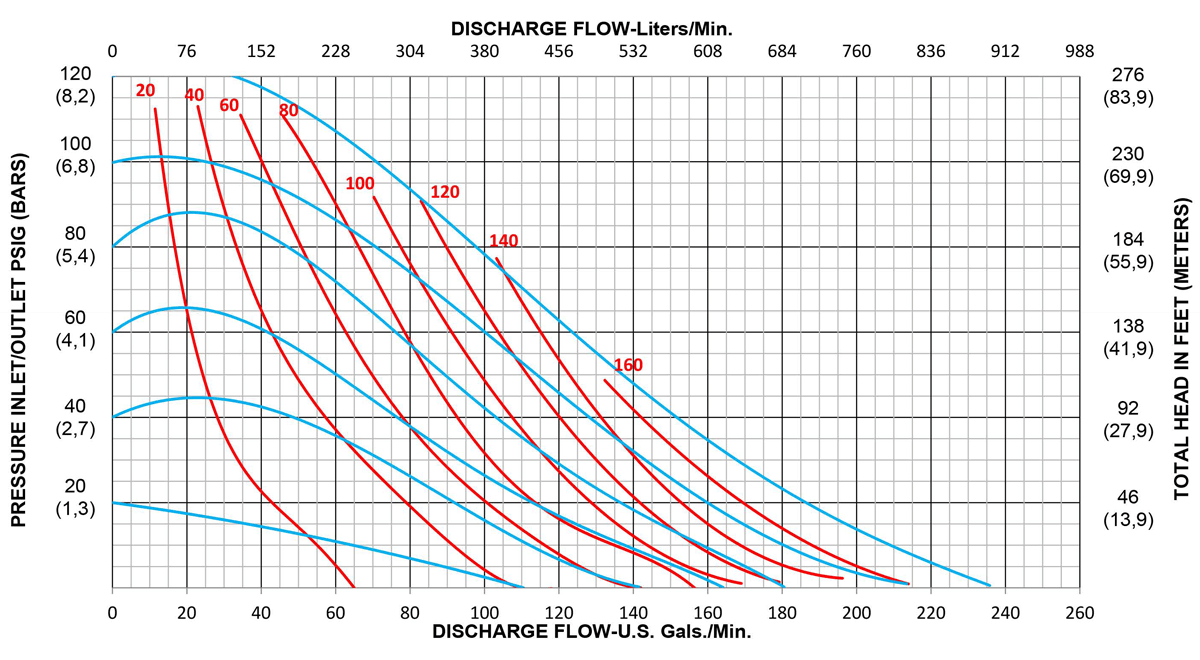

| Flow rate adjustable |
from 0 to 965 l/min. (con H2O) |
| Max pressure |
from 1,4 to 8,2 bar |
| Weight |
114 kg Stainless - 62 kg Allum. |
| Suction |
3" G.f. |
| Discharge | 3" G.f. |
| Air inlet |
3/4" G.f. |
| Suction lift |
~ 4 mt dry |
| Maximun size of solids |
Ø 11,1 mm |
| Max temperatur |
93°C Alluminium / Stainless - Aisi 316 |
| Capacity | 4,674 lt |
