Materials used in the various for construction of parts in contact with liquids:
- Aluminium
- Stainless steel - AISI 316
Materials used for diaphragms:
- Geolast (Buna-N)
- Santoprene (EPDM)
- **Teflon
- Viton

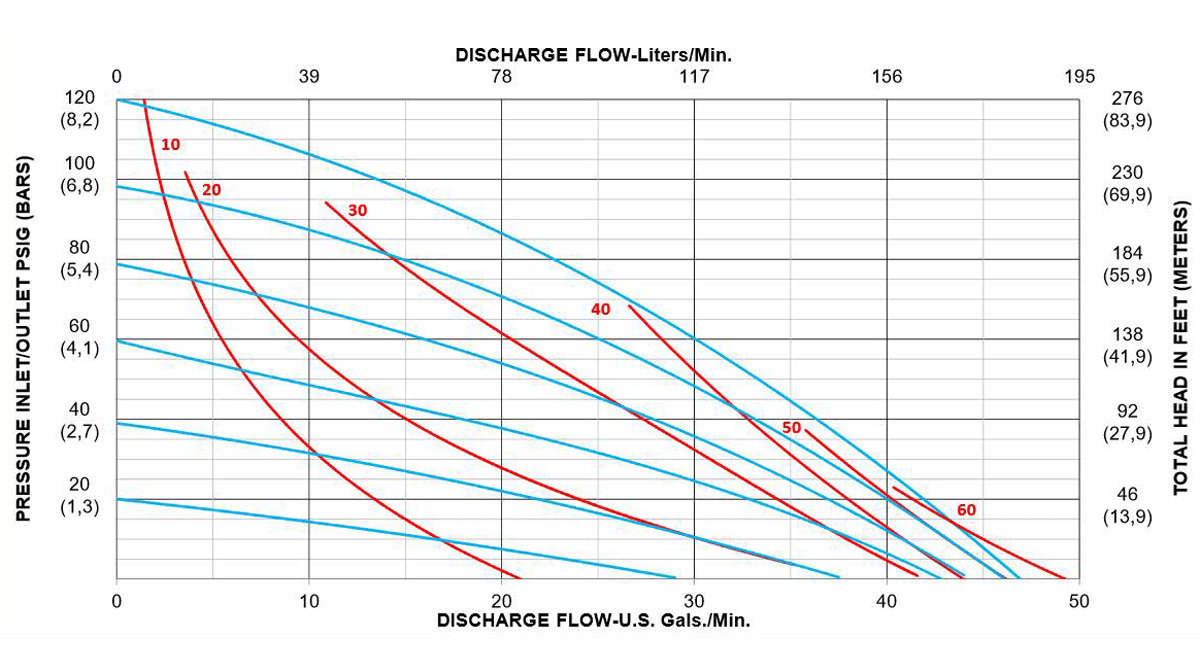

| Flow rate adjustable |
from 0 to 156 l/min. (con H2O) |
| Max pressure | from 1,2 to 8 bar |
| Weight |
30,4 kg Stainless 316 - 10,3 kg other |
| Suction | 1" G.f. |
| Discharge | 1" G.f. |
| Air inlet |
1/4" G.f. |
| Suction lift | ~ 3,5 mt a dry |
| Maximun size of solids | Ø 6,2 mm |
| Max temperatur | 93°C Aluminium / Stainless - Aisi 316 |
| Capacity | 0,315 lt |
Optional new valve for solid step up to Ø 19 mm. Available in Geolast, Santoprene and Viton. Ideal for milk of lime, inks, paints and liquid abrasives.
